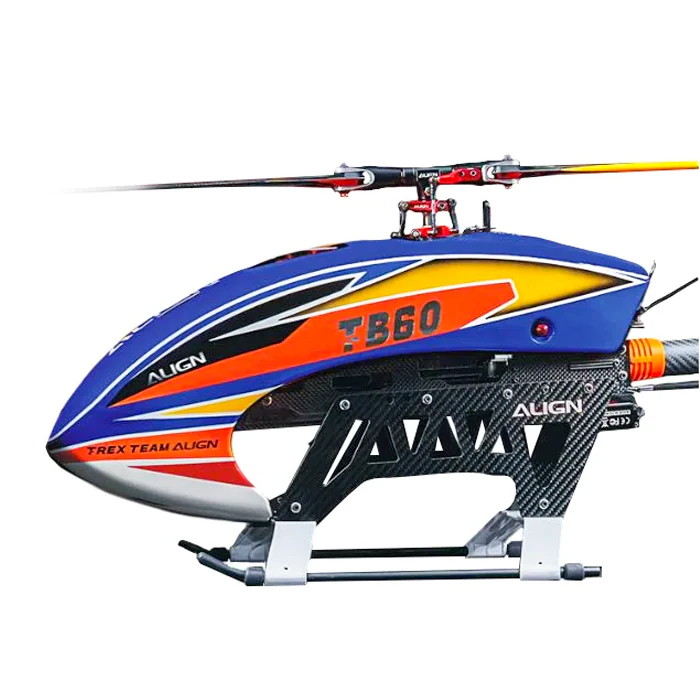

Align TB60 Helicopter Combo (12S)

Standard equipment

●RCE-BL130A Brushless ESC x 1
●750MX Brushless Motor(480KV/4236) x 1
●DS830M High Voltage Brushless Servo x 3
●DS835M High Voltage Brushless Servo x 1

Specification

●Length: 1218mm
●Height: 353mm
●Width: 183mm
●Main Blade Length: 600mm
●Main Rotor Diameter: 1339mm
●Tail Length: 95mm
●Tail Rotor Diameter: 253mm
●Motor Belt Pulley: 23T
●Belt Pulley: 44T
●Front Drive Main Shaft: 15T
●Main Drive Gear: 62T
●Autorotation Tail Drive Gear: 28T
●Tail Drive Gear: 23T
●Drive Gear Ratio: 7.89:1:5.04
●Max RPM(approx.): 2400RPM
●Weight(w/o Batteies): Approx. 2.9kg

Accessories

●TB60 Kit Set x 1 set
●600 Carbon Fiber Blades x 1 set
●95 Carbon Fiber Tail Blades x 1 set
●750MX Brushless Motor(480KV/4236) x 1
●DS830M High Voltage Brushless Servo x 3
●DS835M High Voltage Brushless Servo x 1
●RCE-BL130A Brushless ESC x 1
●Lube Pack x 1

Radio transmitter and electronic equipment required for assembly
