*** Combo Packge Includes:
1 * SAB ILGoblin PRO 420 Helicopter Kit - With Main & Tail Blades - White
1pcs * XDFly HPro 85A ESC 3-6S SBEC For RC Helicopter 380-420 Class
1pcs * Xnova Lightning 3220-950KV Shaft A
1pcs * TORQ BLS0705M Mini HV Brushless Cyclic/Rudder Servo
3pcs * Torq BLS0808 Brushless Micro HV Cyclic Servo
1. SAB ILGoblin PRO 420 Helicopter Kit - With Main & Tail Blades - White
- SAB was the first to introduce the Goblin 420 with a Direct Drive motor, opening up new possibilities in this class.
- Later, to maximize the power-to-weight ratio, SAB developed the belt-driven version: lighter, more powerful, and even more extreme.
- Now, SAB raises the bar once again by combining technology and design.
- Inspired by the iconic lines of the best-selling SG760, the new ilGOBLIN 420 brings the same stunning appeal to the 420 class.
*** Performance, style, innovation:
- Main rotor diameter 935mm (with 420mm blades)
- Main blade length 380 to 420mm
- Tail rotor diameter 194mm (with 72mm tail blades)
- Tail blade length 60 to 72mm
- Micro size cyclic servos (23mm)
- Mini size tail servo (35mm)
- Maximum battery size: 140x40x50mm (max)
- Recommended battery: 6s 2200/2700 mAh
- Recommended motor: 3020 – 3215 – 3220
- Recommended motor KV: 900-1000 KV
- Recommended battery weight: 350-420 grams
- Recommended ESC: 60A (70-80A is required only for hard 3D flight with temperatures above 30°C)
- Tail rotor ratio 4:1
- 8mm main shaft
- 5mm tail shaft
*** ilGoblin 420 main features:
- Quick release battery tray with integrated connectors
- Zytel HTN resin blade grip arms (sacrificial)
- It is not necessary to remove the canopy to replace the batteries.
- Main ratio 1:5/6
- Tail ratio 4:1
*** Package includes:
ILGoblin Pro 420 Helicopter Kit
S420-Orange Main Blades
S72-Orange Tail Blades
2. XDFly HPro 85A ESC 3-6S SBEC For RC Helicopter 380-420 Class
*** Description:
We(XDFly) have released HPRO 85A ESC 3-6S Built-in SBEC 6-12V Adjustable Speed Control For RC Airplane Aircraft F3A F3C 380-420 Helicopter.
*** Key Features:
1. Equipped with high-performance 32-bit G4 processor with operating frequency of up to 170MHz.
2. Adopting new generation of power MOSFET, it features low heat generation, high instantaneous current endurance and high reliability.
3. Self-check function: After power-on, the ESC will automatically self-check for power supply short circuit, motor phase loss, throttle zeroing, and voltage range.
4. The special and unique case design greatly increase the heat dissipation area and significantly enhance the heat dissipation performance of the ESC.
5. With helicopter speed governor function, the constant speed sensitivity can be adjusted and is easy to operate.
6. Equipped with the time selection function for stall landing, it can be manually adjustable within the time set to avoid a crash due to handling errors.
7. The ESC has an independent programming interface, it supports parameter adjustment via Phone APP/Mikado VBCT/E/Rotorflight2/Jeti remote control devices.
8. With telemetry function for Mikado VBCT/E, Rotorflight2, Futaba SBUS2, Jeti, MSH Brain, and iKon, allowing users to check data in real time.
9. Multiple protections: abnormal power-on voltage, start-up, temperature, throttle signal loss, over-load, low-voltage, over-current.
*** Specification:
- Model: HPRO 85A 3-6S SBEC
- Continuous Current(A): 85A
- Burst Current(A): 160A
- Input Voltage: 3-6S Lipo
- BEC Output: 6-12V Adjustable; Current Cont.10A, Peak 35A
- Size: 70x36x21mm
- Weight: 93g
- Power Wire: 12 Gauge 130mm Red/Black
- Motor Wire: 12 Gauge 92mm Black
- Programming Way: XDFly Android&iOS APP/VBCT/E/RF2/Jeti
- Telemetry: VBCT/E/RF2/Futaba SBUS2/Jeti/MSH Brain/iKon
- Applications: 380-420 Class electric helicopters or fixed-wing aircrafts
3. Xnova Lightning 3220-950KV Shaft A:
The 3220 lightning is a brand new powerhouse. Any helicopter asking for insane power swinging 380-420mm blades will be supperhappy with this masterpiece. The Xnova lightning series is the highest level of motor performance money can buy nowadays.
Xnova brushless high performance outrunner motor designed for extreme hard 3D, running in 380-420mm bladesize helicopter where highest power to weight ratio is important.At the same time this motor is also extreme efficient!
Improved higher efficiency with thinner stator lamination, designed with integrated cooling system resulting in lower temperature.
Increased power output by use of thicker hand wound YY single strand copper wires, heat resistant up to 250 degrees C.
New type of high-performance neodymium magnets, heat resistant up to 150 degrees C resulting in overall better performance.
100% handwound.
*** Specifications:
- Slots & Poles: 12n10p
- Winding T: YY
- rpm/V: 950
- Volt (V): 10 / 22.2
- Io(A): 1.8 / 3.0
- Rm (mohm): 18 / 18
- Weight (without connector) (g): 200
- Body Length (no shaft) mm: 45
- Diameter (mm): 40.5
- Shaft Length (mm) (Details pictures): 22
- Shaft Dia. (mm): 5
- Mounting Holes CTC Distance (mm): 25
- Mounting Screw: M3x0.5
- Max Eff. Curr.: 31.62 / 60.83
- Max Eff. : 88.62 / 90.14
- Kt (Nm/A): 0.0101
- Km (Nm/sqrt(w)): 0.0749
- Max Continuous Power(Watts): 1450
- Peak Continuous Power(Watts) (2 sec): 1900
- Max Continuous Current(Amps): 66
4. TORQ BLS0705M Mini HV Brushless Cyclic/Rudder Servo:
This servo is basically a Mini Rudder Servo that can handle up to 700-800 Heli size, but if you have FBL that can use with 760us cyclic servo, you can also use this servo as cyclic servo for 550-600 size.
*** Features:
- Brushless Motor Technology for the Ultimate Power & Control
- Incredible Levels of Speed & Performance
- Ultra Precise, High Resolution Control
- Fully Replaceable Steel Gear Train for Maximum Strength
- Excellent Thermal Dissipation via Finned 6061 Aluminum Case
- 8.4V High Voltage Ready
- Optimized for Heli
- Dual Ball Bearing Construction
*** Speed:
- 0.05 sec / 60° @ 8.4V
- 0.06 sec / 60° @ 7.4V
- 0.07 sec / 60° @ 6.0V
*** Torque:
- 15Kg.cm / 208.31 oz in. @ 8.4V
- 13Kg.cm / 180.53 oz in. @ 7.4V
- 10Kg.cm / 138.87 oz. in. @ 6.0V
*** Specifications:
- Motor Type: Brushless
- Servo Arm Type: Futaba
- Working Frequency: 760us / 560Hz
- Weight: 45g
- Dimensions: 35.5mm x 15mm x 35.5mm (LxWxH)
- Voltage Range: 6.0V - 8.4V
*** Usage Note:
Servo Grommet is suggested use if you use our servo on Nitro Heli.

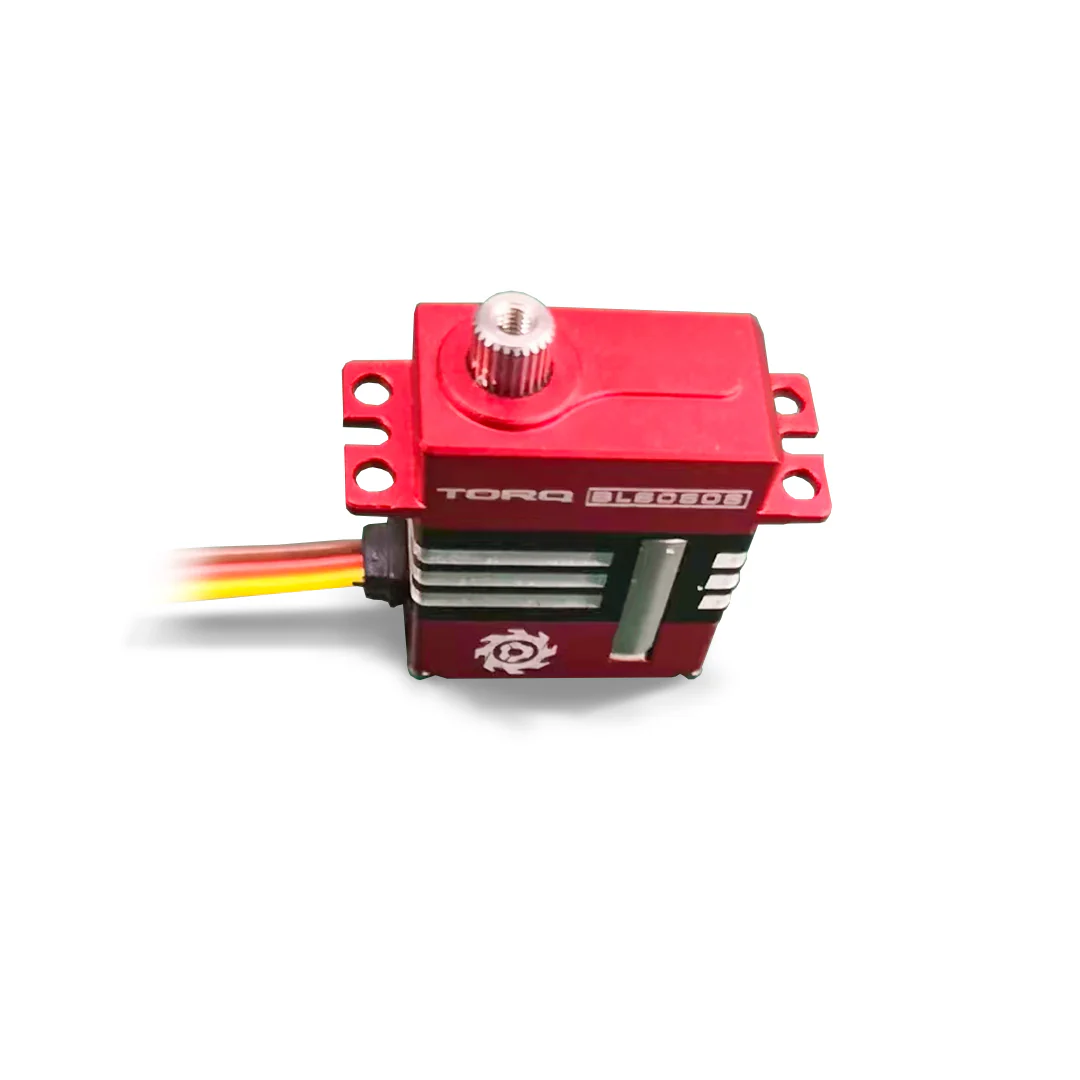

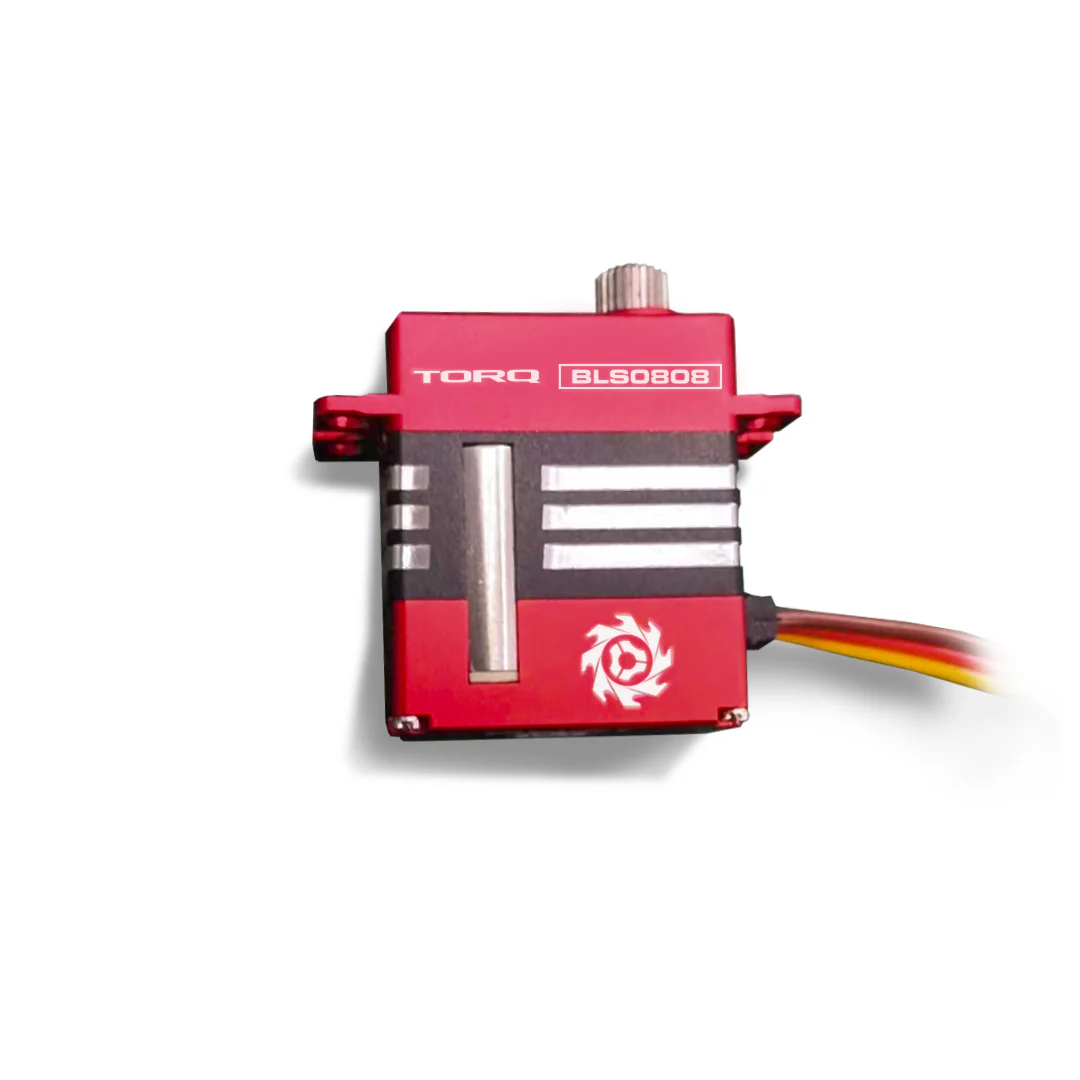

5. Torq BLS0808 Brushless Micro HV Cyclic Servo:
Torq BLS0808 Brushless Micro HV Cyclic Servo - Power, Performance & Pure Domination.
Optimized for second to none power & performance, TORQ brings forth a BRUSHLESS micro servo that is ready & able to push the boundaries of the micro servo world.
Designed specifically for high torque / high speed demands of helicopter, airplane & jet based aircraft, the Torq BLS0808 Brushless Micro HV Cyclic Servo utilizes Brushless motor technology to obtain peak torque output, equating the Torq BLS0808 Brushless Micro HV Cyclic Servo as one of the most powerful micro servos on the market today.
With a crushing torque rating paired with rapid transit speeds, the Torq BLS0808 Brushless Micro HV Cyclic Servo is ready to exceed the boundaries of your next flight, with next level precision and resolution that can be felt at the sticks. Ready & waiting for high voltage applications, the BLS0808 operates within a wide voltage range, providing peak torque & speed with 8.4V of power.
Constructed with fully replaceable high strength steel gears, the Torq BLS0808 Brushless Micro HV Cyclic Servo utilizes a thermal dissipating 6061 aluminum case that is further aided in cooling via an exposed motor design. Optimized for extreme aircraft applications that demand incessant torque and power, the BLS0808 provides ultra crisp control, with in flight tactile feel that can be seen and felt.
Step up to the Torq BLS0808 Brushless Micro HV Cyclic Servo - pure performance & control for epic levels of servo domination.
*** Specifications:
- Rated Voltage: DC 7.4V
- Voltage Range: DC 6.0V-8.4V
- Torque: [email protected]
. [email protected] (129 oz.in)
- Speed: 0.09sec/60° 6.0V
. 0.08sec/60° 7.4V
. 0.07sec/60° 8.4V
- Working Frequency: 1520us/333KHz or 760us / 560Hz (need the TBOX Program Card)
- Default Travel Angle: ±50° (100° Total)
- Temperature Range: -20℃ to +65℃
- Programmable: Yes, compatible with TORQ TBox
- Case Material: Aluminum Alloy
- Motor Type: Brushless DC Motor
- Gear Set Material: Hardened Steel
- Dimensions: 23*12*27.5mm
- Weight: 20g
