Tron 5.8 HERITAGE Helicopter Kit (w/o Blades) - Gray/Neon Yellow

• Recommended main blade size 580mm. (550mm - 610mm possible). Tail blade size 86 - 95 mm.
• Supersonic canopy mounts included in kit. ( Backside )
• Semi Fusion edition design included in kit. ( frame and tail fin stickers )

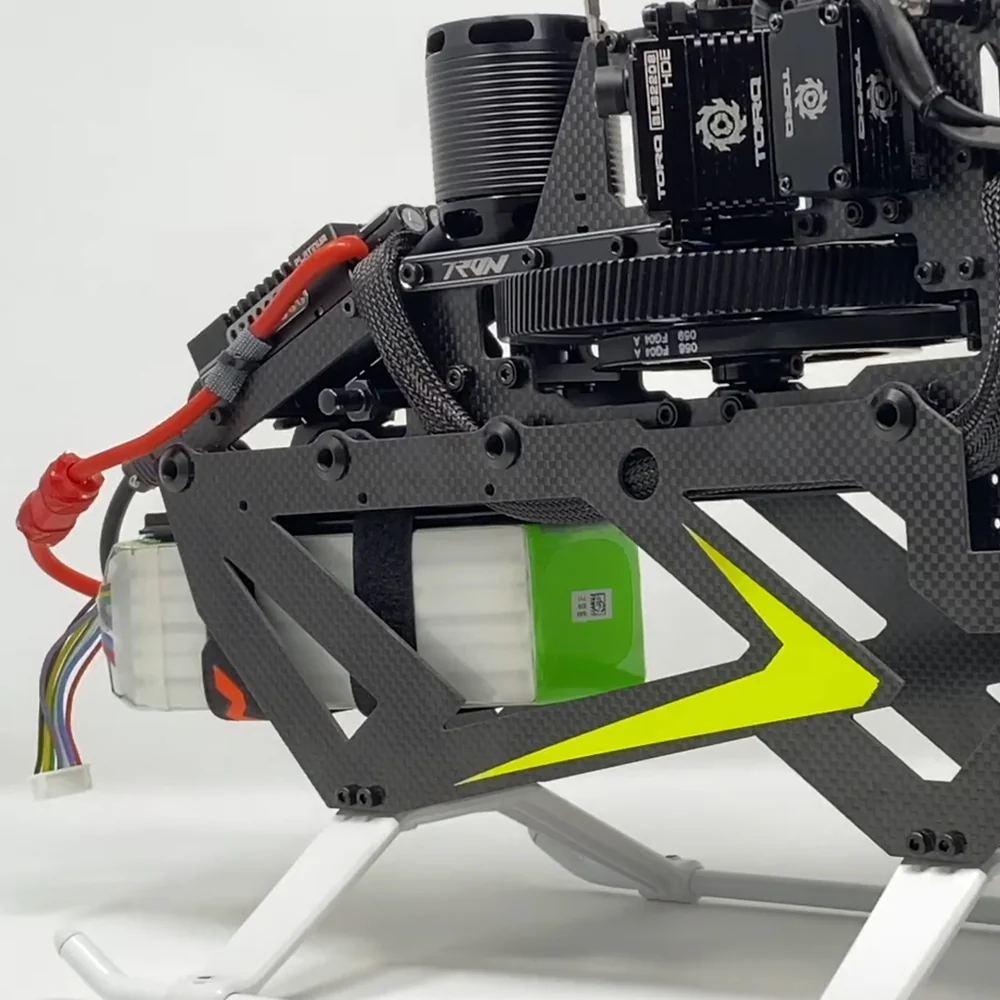

• Wide battery compartment with quick lock and release system. (Same as Tron 5.5.)

• Light, yet very stiff and robust.
• Dry weight= 1530 grams without blades and electronics.
• Full-size tail servo.

• Mini or full-size cyclic servo option. (Adapters included in kit)
• Motor mounting features a bearing block supported pinion, reducing overall wear on the power system and drive train.
• Compatible with  a wide range of motor sizes.  4020, 4025 or 4225 series. From 1000KV-1350KV for 6s and 560KV for 12S ( 6mm shaft diameter with min 15mm lenght required )
• 16T/6mm motor pinion included. (13,14,15,17T optional available)

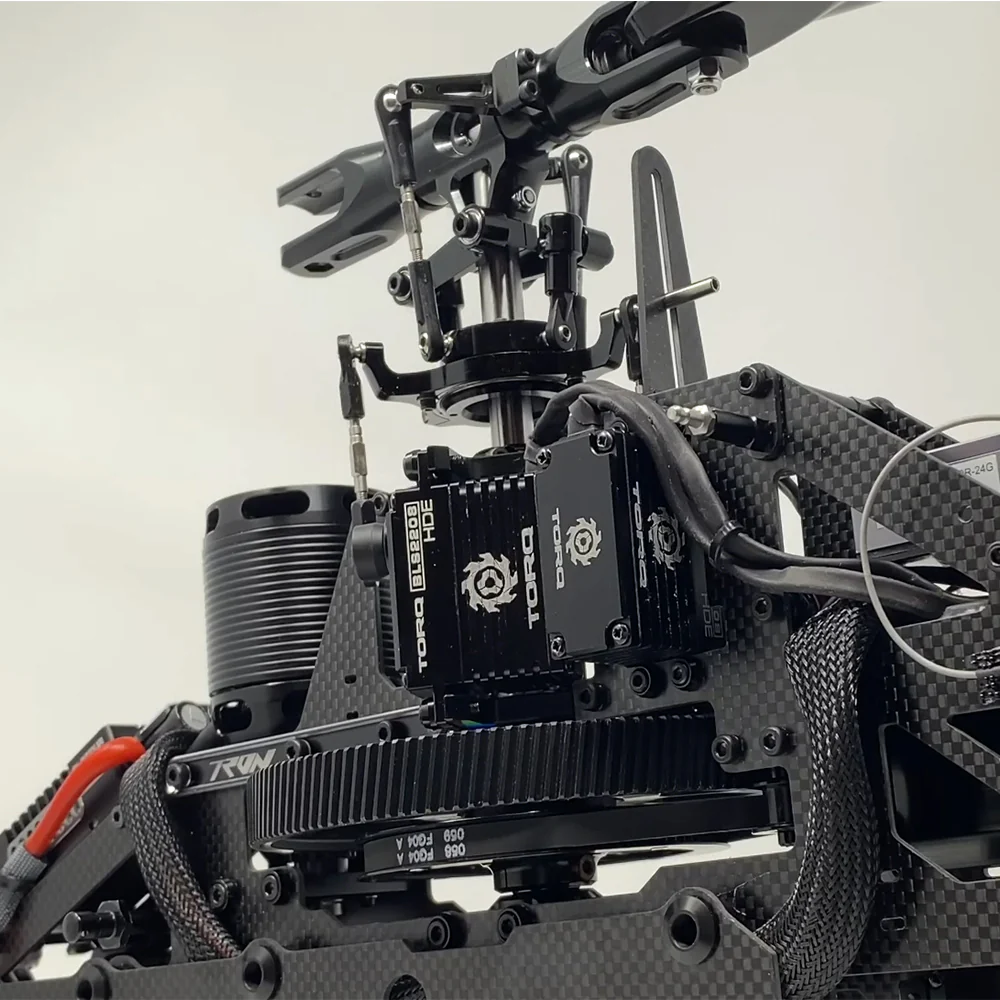

• POM-CNC machined main gear 137T / mod 0.9 which provides very efficient operation.
• 3th bearing support for main shaft.
• Heavy duty one way bearing and hub design.
• Innovative FBL tray. ( Adjustable dampening hardness)

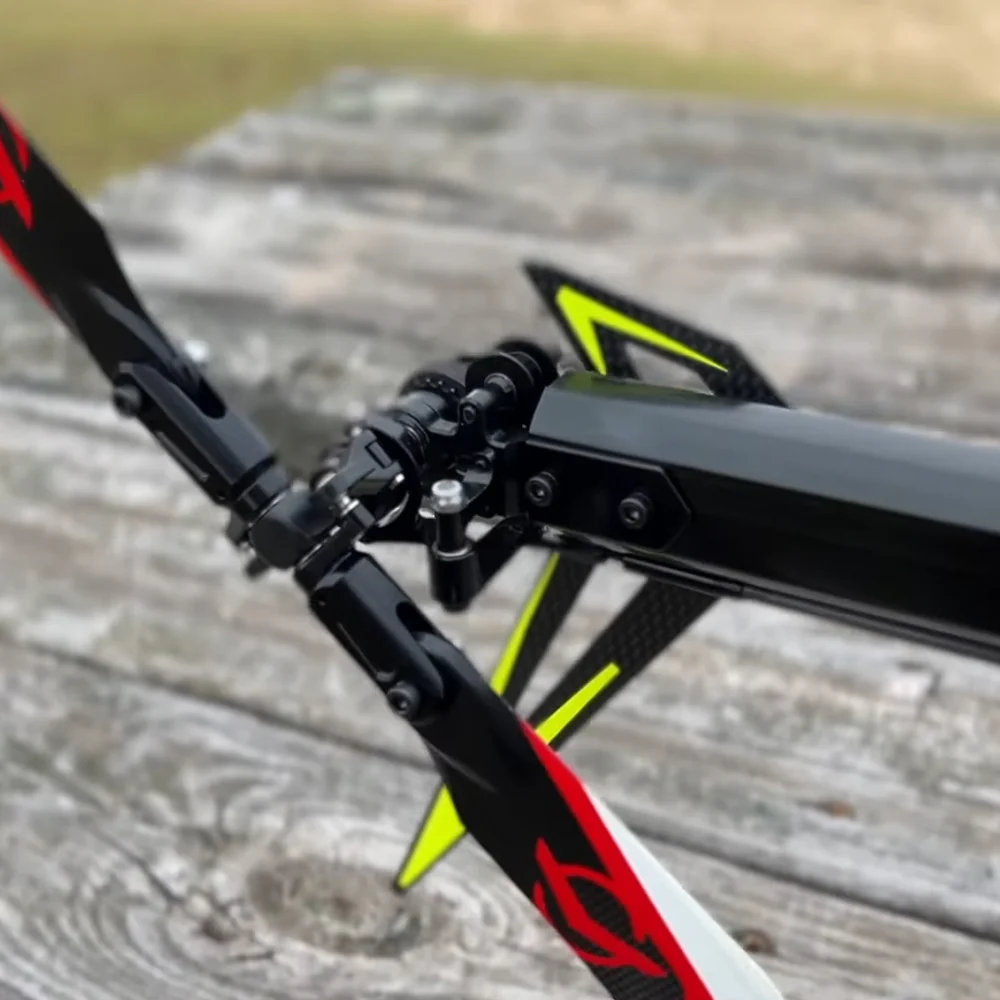

• Octa boom design with oval side shapes, no boom supports needed.
• Capable to use a wide range of lipo batteries. 6,8,10 or 12S. ( 6S-5000mAh to 5500mAh recommended or 12S- 3300mAh stick pack )

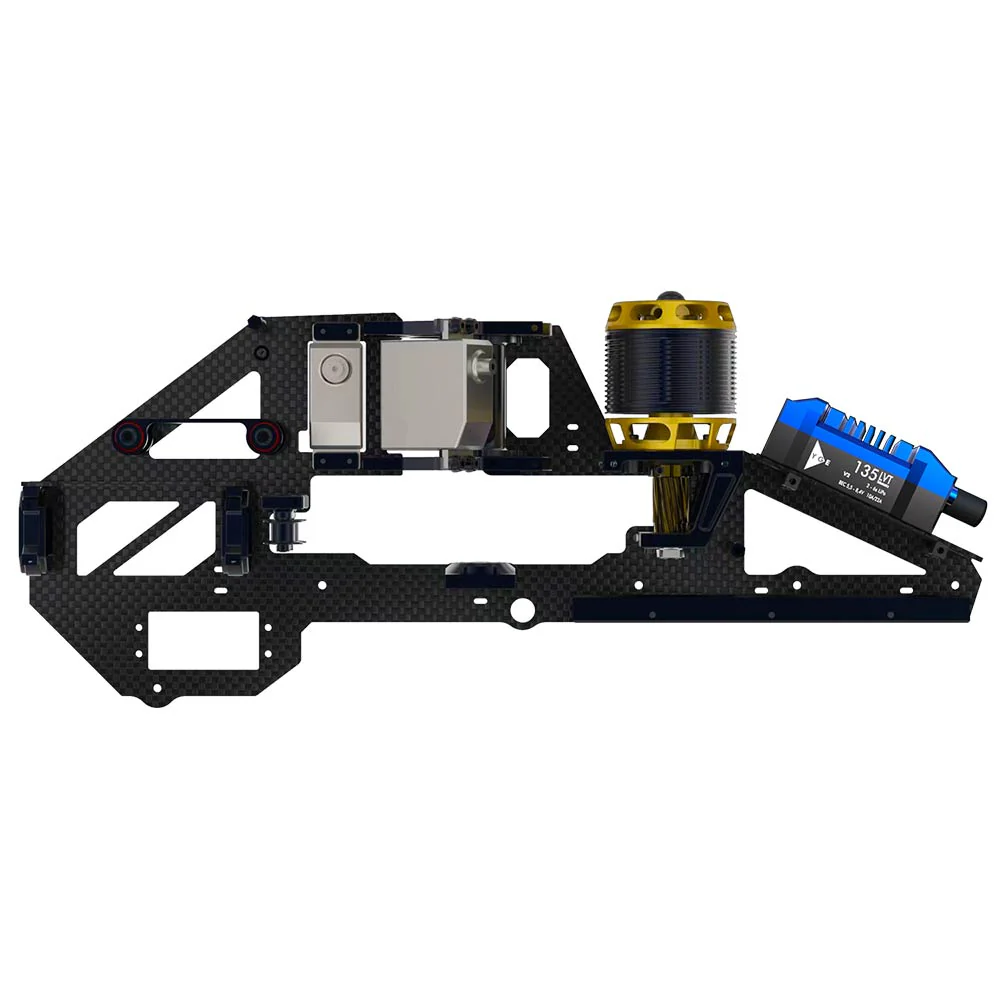

• Perfectly thought-out servo layout in conjunction with the FBL system and ESC.
• Easy cable routing with various options to ensure a clean setup. Modern, sporty and functional design.

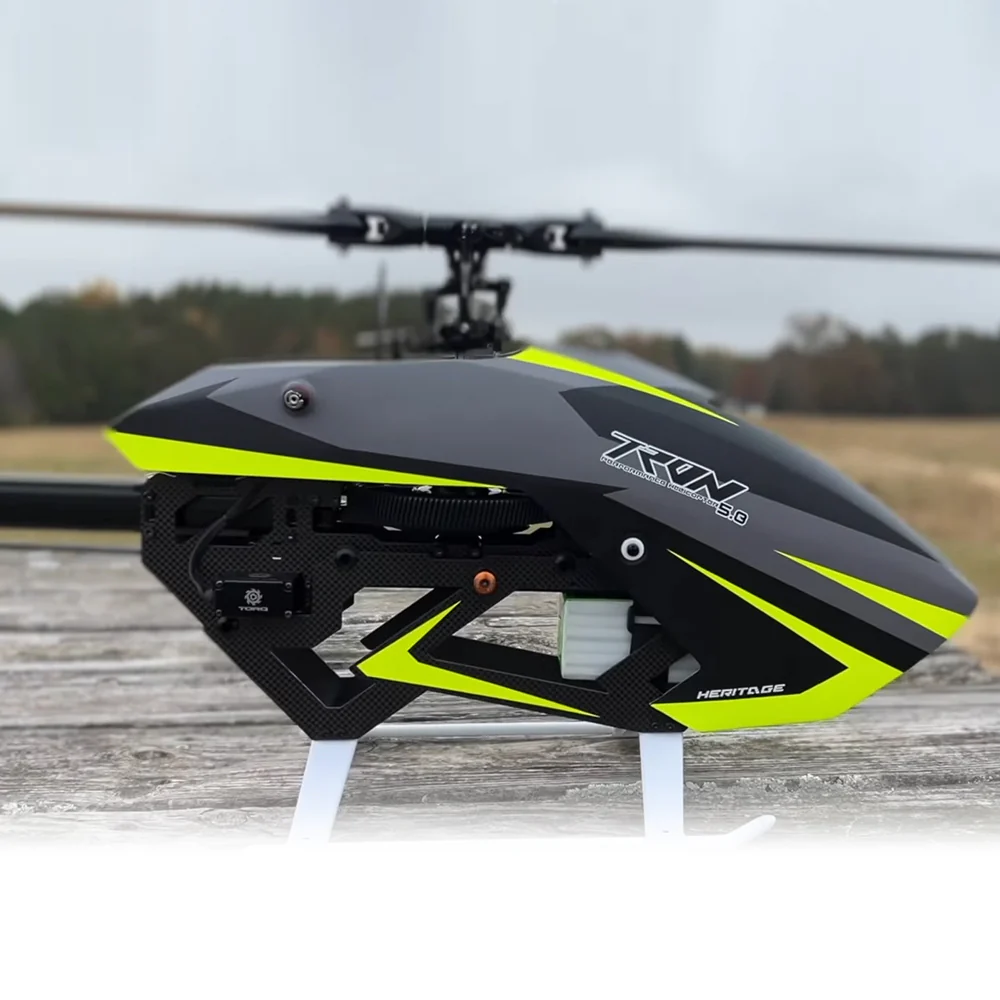

• High visibility canopy for perfect orientation in flight. 2 option available.
• Sustainably produced.

Features at a Glance:

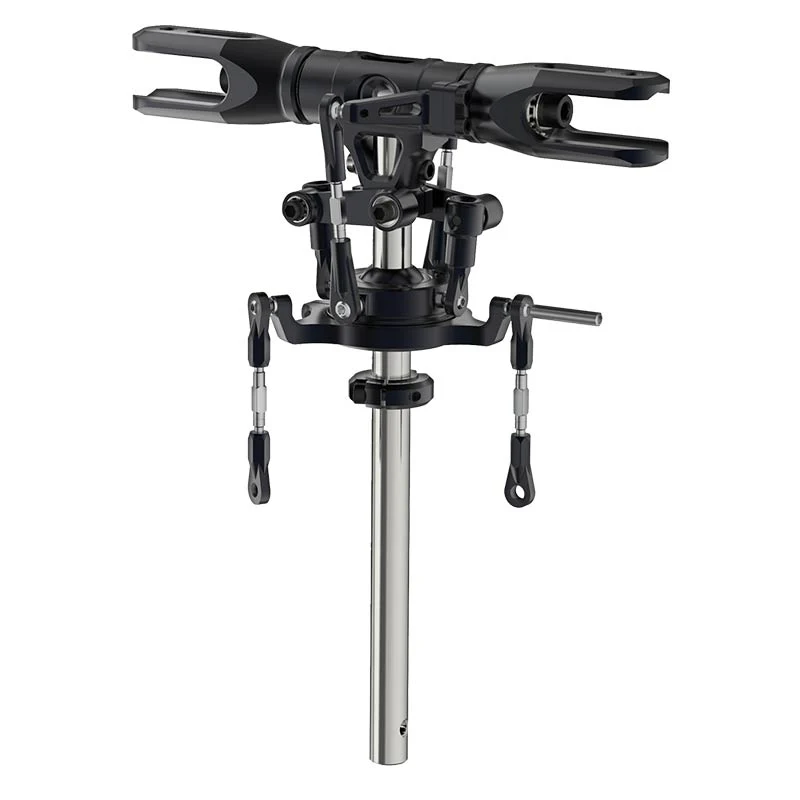

• Optimized servo and rotorhead geometry
• Accepts full size & mini size cyclic servos
• Adjustable dampened gyro mounting tray
• Bearing supported motor pinion system
• Octo boom without boom supports
• High visibility canopy & fusion style decals
• Supersonic rear canopy mounts

Specifications:
Main Blade Length: 580-610mm
Tail Blade Length: 85-96mm
Motor Drive Gear: 16T
Main Drive Gear: 137T
Autorotation Tail Drive Gear: 80T
Tail Drive Gear: 19T
Drive Gear Ratio: 8.563:1:4.21
Weight (Airframe Only): 1530g

Needed to Complete:

• (1) 2.4GHz Transmitter & Receiver (6-channel or more, helicopter system)
• (1) 580-610mm Main Blades
• (1) 85-96mm Tail Blades
• (1) 4020-4225 Size Brushless Motor (kV dependent on battery choice)
• (3) Full size or Mini cyclic servos
• (1) Full size tail servo
• (1) 3-Axis Flybarless System
• (1) ESC (120A+)
• (1+) Batteries:
• 6s: 5000 - 5500mAh
• 7s: 4500 - 5500mAh
• 8s: 4000 - 5000mAh
• 12s: 3000-3500mAh
• Compatible charger
• Pitch gauge
• Various tools, lubes & greases for setup and assembly
